Hydrothermal alteration and zeolitization of the Fohberg phonolite, Kaiserstuhl Volcanic Complex, Germany
Research
Collaboratores:
Dipl. Geol. Simon Spürgin, Hauri, Mineralstoffwerk,
Bötzingen, Germany
Dr. Yann Lahaye, Geological Survey of Finland
The subvolcanic Fohberg phonolite (Kaiserstuhl Volcanic Complex,
Germany) is an economic zeolite deposit, formed by hydrothermal
alteration of primary magmatic minerals. It is mined due to the high
(>40 wt%) zeolite content, which accounts for the remarkable
zeolitic physicochemical properties of the ground rock. New
mineralogical and geochemical studies are carried out (a) to evaluate
the manifestation of hydrothermal alteration, and (b) to constrain the
physical and chemical properties of the fluids, which promoted
hydrothermal replacement. The alkaline intrusion is characterized by
the primary mineralogy: feldspathoid minerals, K-feldspar,
aegirine–augite, wollastonite, and andradite. The rare-earth
elements-phase götzenite is formed during the late-stage magmatic
crystallization. Fluid-induced re-equilibration of feldspathoid
minerals and wollastonite caused breakdown to a set of secondary
phases. Feldspathoid minerals are totally replaced by various zeolite
species, calcite, and barite. Wollastonite breakdown results in the
formation of various zeolites, calcite, pectolite, sepiolite, and
quartz. Zeolites are formed during subsolidus hydrothermal alteration
(<150 °C) under alkaline conditions. A sequence of
Ca–Na-dominated zeolite species (gonnardite, thomsonite,
mesolite) is followed by natrolite. The sequence reflects an increase
in log[(aNa+)/(aH+)] and decrease in log[(aCa2+)/(a2H+)] of the
precipitating fluid. Low radiogenic 87Sr/86Sr values indicate a local
origin of the elements necessary for secondary mineral formation from
primary igneous phases. In addition, fractures cut the intrusive body,
which contain zeolites, followed by calcite and a variety of other
silicates, carbonates, and sulfates as younger generations. Stable
isotope analysis of late-fracture calcite indicates very late
circulation of meteoric fluids and mobilization of organic matter from
surrounding sedimentary units.
Reference:
Weisenberger T.B., Spürgin S & Lahaye Y. (2014) Hydrothermal
alteration of the Fohberg phonolite, Kaiserstuhl Volcanic Complex,
Germany. International Journal of Earth Sciences. 103 (8).
2273-2300. doi: 10.1007/s00531-014-1046-1 (pdf)
Zeolites
in alkaline rocks of the Kaiserstuhl volcanic complex, SW Germany - new
micropobe investigation and their relationship to the host rock
Research
Collaboratores:
Dipl. Geol. Simon Spürgin, Hauri, Mineralstoffwerk,
Bötzingen, Germany
Low-grade
zeolite facies mineralisation in the Kaiserstuhl volcanic complex
results from alteration of alkaline volcanic rocks. Nine different
zeolite species are known from the volcanic complex: analcime,
chabazite-Ca, faujasite-Na, faujasite-Mg, natrolite, offretite,
phillipsite-K, phillipsite-Ca and thomsonite. Their occurrence as well
as their chemical composition depends on the chemical composition of
the host rock, local hydrological features and porosity of the rock.
New chemical analyses are presented, in order to give chemical
compositions of Kaiserstuhl zeolite species, which were never analysed
before, e.g. thomsonite from the Strümpfekopf-Totenkopf area,
as
well as a re-evaluation of zeolite species from classic localities. New
microprobe analyses of barrel-shaped offretite from the Limberg area
clearly show that the postulated epitaxial intergrowth of offretite and
erionite does not occur.
Textural and chemical observations require that the elements for
zeolite formation derived from the hydration and palagonitisation of
basaltic glass, and alteration of primary phases (e.g. sodalite,
leucite). The zeolite species depends on the primary mineralogy and
chemical composition of the host rock: Analcime occurs as pseudomorphs
after leucite, which is a rock forming mineral in most lavas and tuffs
of tephritic composition, and natrolite is derived from hydrothermal
alteration of sodalite-group minerals in phonolitic intrusions.
Reference:
Weisenberger T. & Spürgin S. (2009) Zeolites in
alkaline rocks
of the Kaiserstuhl volcanic complex, SW Germany - new micropobe
investigation and their relationship to the host rock. Geolgica Belgica
12/1-2, 75-91 (pdf) |
Fig. 1: Scanning electron
microscopy images showing the morphology of
zeolite species from the Limberg quarry I. A Faujasite B
Barrel-shaped offretite
Fig. 2: Backscattered
electron and
element distribution images of offretite in a limburgite vesicle,
collected in the Limberg quarry I.
|
Primary vs.
secondary
analcime: a
ney leucitophy dike from the Kaiserstuhl volcanic complex
Research
Collaboratores:
Dipl. Geol. Simon Spürgin, Hauri Mineralstoffwerk,
Bötzingen, Germany
Joachim Hörth, Bühl, Germany
A
new leucitophyre dike (phonolitic leucitite), which are very rare in
the Kaiserstuhl, was found at Strümpfekopf near the village of
Bickensohl. Beside this locality, only four leucitophyre descriptions
are confirmed during the last 200 years of research; one of them the
well-known dike from Eichberg (Oberrotweil). The dike at
Strümpfekopf is hosted by a 16,2 million years old,
medium-grained
essexite and therefore belongs to the younger products of
volcanism in the Kaiserstuhl. The Mg-value (0.2) indicates considerable
fractionation. The dike contains 42.4 vol-% phenocrysts in very
fine-grained to vitreous matrix, essentially leucite >1.4 mm and
a
second leucite population of 0.2-0.6 mm. Additional phenoctyst phases
are sanidine, aegirine-augite, melanite, apatite and accessories
(magnetite, biotite, calcite). Leucite is completely decomposed to
analcime, sanidine is also heavily altered. Different observations
(e.g. shape and inclusions in analcime, mineral chemistry, cracking,
rock alteration) confirm the secondary origin of analcime pseudomorphs
after primay magmatic leucite.
Reference:
Spürgin S., Weisenberger T. & Hörth J. (2008)
Das
Leucitophyrvorkommen vom Strümpfekopf im Kaiserstuhl
– eine
historische und mineralogische Betrachtung. Berichte der
Naturforschenden Gesellschaft zu Freiburg i. Br. 98, 221-244 |

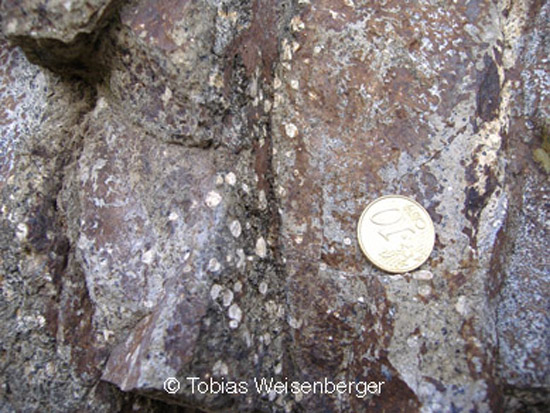

Fig. 1: Leucitophyr dike
Fig. 2: Thin section potograph under plane polarized
light. Euhedral analcime and augite crystals. Image width 3.7 mm
|
|
